Round Duct Flange Forming Machine

The Round Flange Forming Machine is a fully automatic CNC equipment specially designed for producing round flanges in ventilation and HVAC systems. Driven by a servo motor, it realizes high-precision automatic feeding, forming and cutting for round flanges (φ250～φ3600mm), with an indexing accuracy of ±0.1mm. Equipped with a user-friendly TFT touch interface and high-hardness quick-change forming molds, the machine adopts a robust multi-roller structure and double-beam frame design to ensure long-term stability and consistent forming precision. It is a core equipment for efficient production of round air duct flanges, which greatly reduces manual operation and material waste, and is widely used in HVAC, ventilation and air purification industries.

HS 코드 :
8462290000
최소 주문하다 :
1 Set
제조 시간 :
7-15 Working Days
지불 조건 :
T/T (30% Deposit + 70% Balance Before Shipment), L/C, Western Union
포장 방법 :
Export Standard Wooden Case / Iron Frame Packaging (IPPC fumigated)
품질 보증 기간 :
12 Months
연간 생산 능력 :
400 Sets/Year
고객 디자인 또는 OEM :
Available

지금 문의

제품 세부 정보

Round Duct Flange Forming Machine

I. Round Duct Flange Forming Machine's Features:

1. Full Automation & High Forming Precision

As a professional CNC automatic equipment, it is driven by a high-performance servo motor to achieve accurate automatic feeding, forming and cutting of round flanges. The indexing accuracy is up to ±0.1mm, which ensures the consistency of flange size and roundness, meeting the high-precision processing requirements of air duct flanges.

2. Humanized Operation & Quick-Change Molds

Configured with an intuitive and easy-to-operate TFT touch interface, the operation is simple and easy to master, reducing the learning cost of operators. The forming molds are made of high-quality H13K tool steel (hardness up to HRC60°), with excellent wear resistance and impact resistance; the quick-change mold structure design shortens the mold replacement time and improves the production flexibility for processing different specifications of round flanges.

3. Stable Structure & Long-Term Reliability

Adopting a multi-roller forming + double-beam frame structure, the equipment has strong rigidity and good stability, which can effectively avoid structural deformation and precision loss caused by long-term continuous forming work, and maintain consistent forming precision for a long time, ensuring the stable output of qualified products.

4. High Efficiency & Material Saving

Specialized for the batch processing of round air duct flanges, it realizes continuous automatic processing, which is far more efficient than traditional manual and semi-automatic equipment. The precise positioning system effectively reduces the error of material feeding and forming, minimizes material waste, and lowers the overall processing cost of flanges.

5. Wide Specification Adaptability & Strong Compatibility

The equipment is suitable for processing common round flange specifications in the air duct industry, with strong compatibility for different sizes of round flanges (φ250～φ3600mm). It can process strip materials with a thickness of 0.5-4mm, and the power configuration and structural design meet the processing needs of various industrial scenarios, adapting to the layout of most factory workshops and realizing flexible production.

II. Technical Parameters

1.Machine name: Round Duct Flange Forming Machine

2.Thickness range: 0.5 - 4 mm

3.Power: 7.5 kW

4.Weight: 1800 kg

5.Dimension: 4500×1200×1500 mm

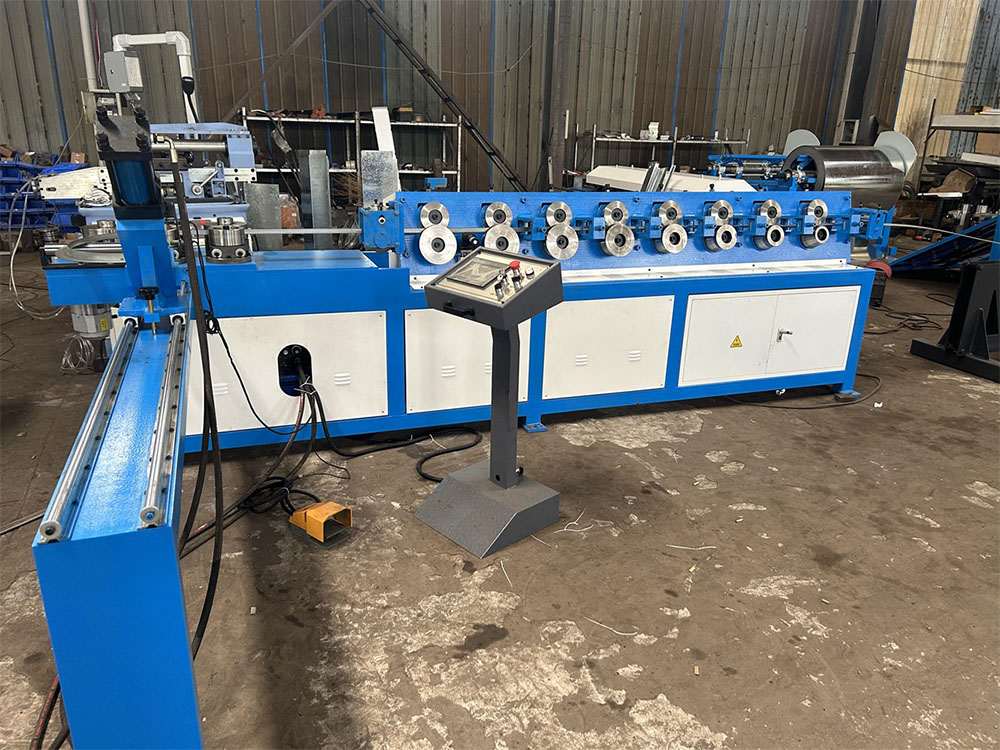

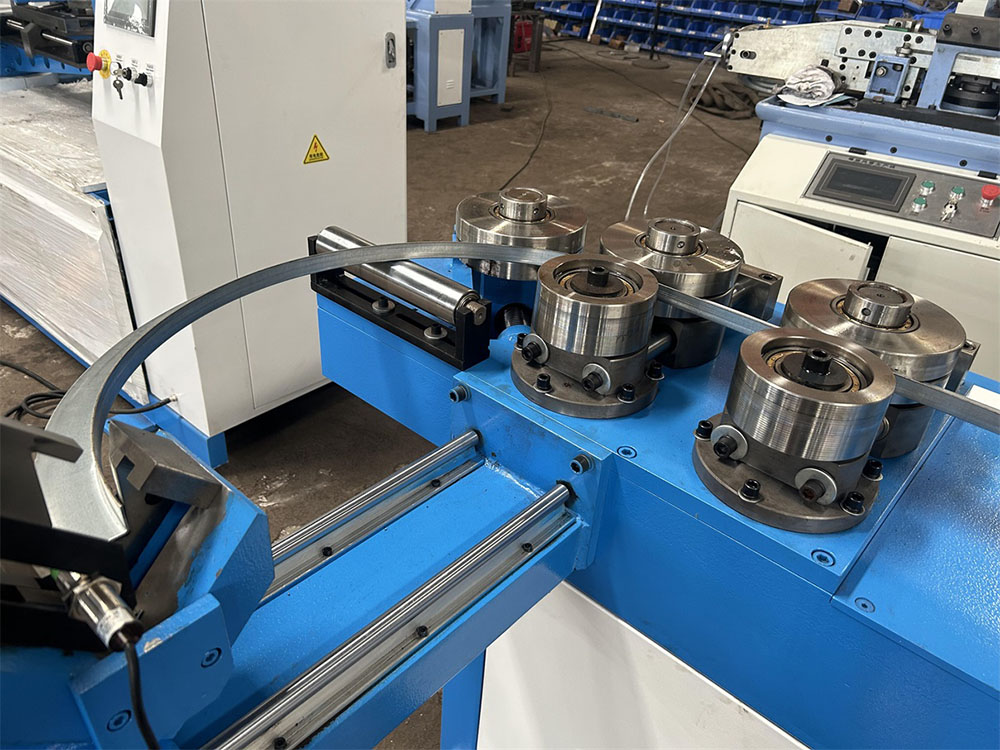

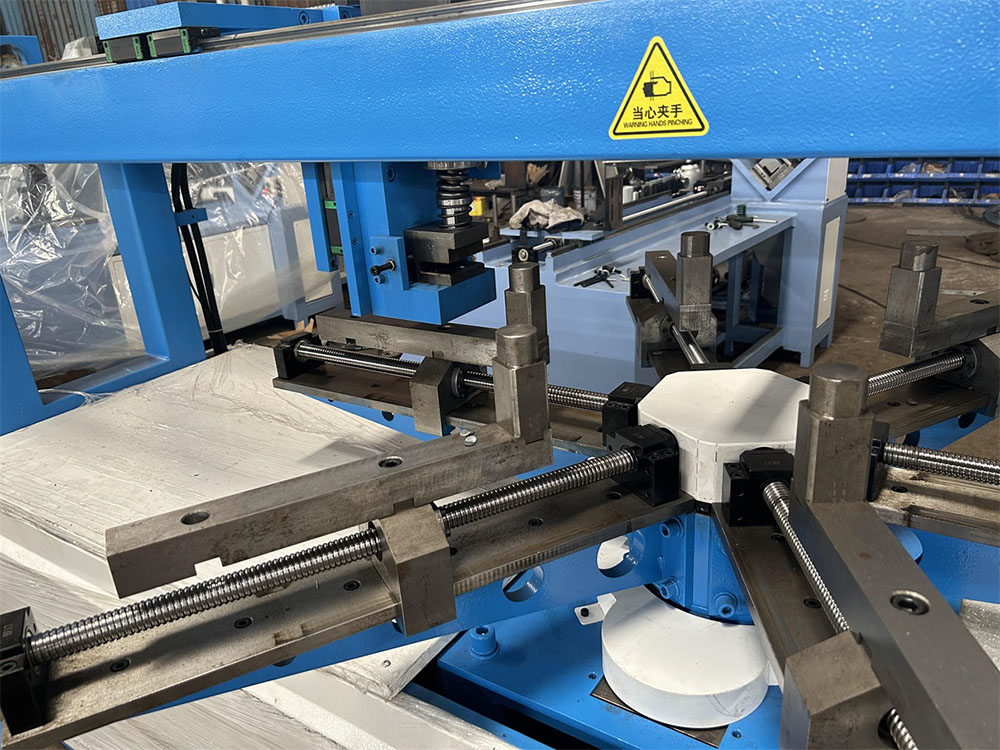

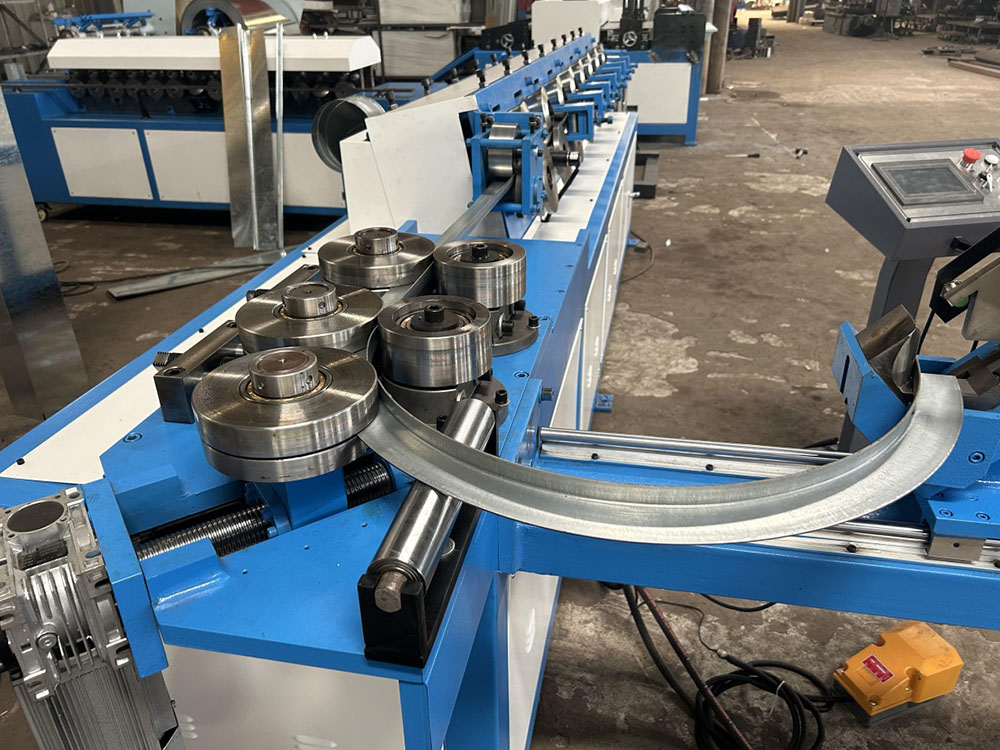

III. Real Photos:
